Concrete Production & Crude Oil Storage Barge

$2,600,000.00

Add to wishlist
SKU: 17890 Categories: , 17890
AGENT: Jeff Stephens | 504-450-5414
Email this agent
SKU:BG 17890
CATEGORIES:Barges For Sale, Tank Barges For Sale
DIMENSIONS: 180 Length X 72 Width X 12 Height
Description

Description

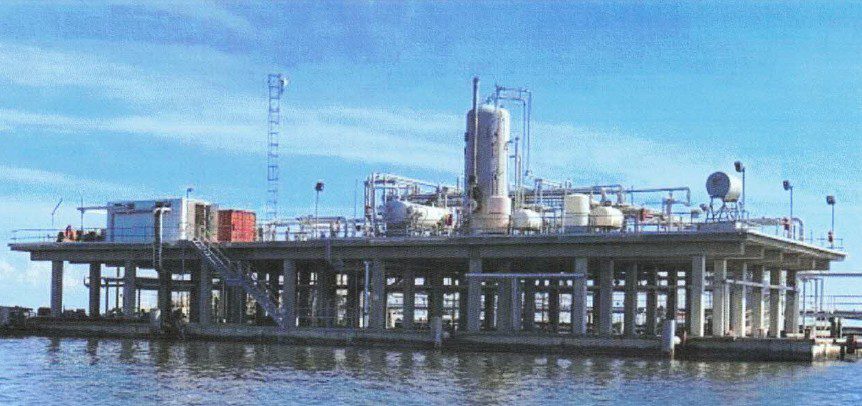

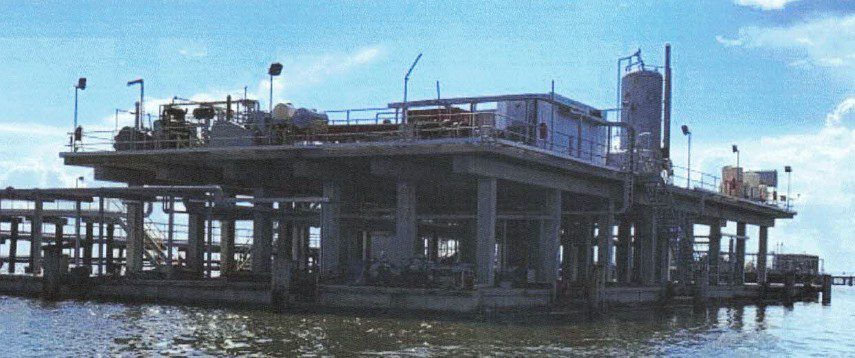

CONCRETE PRODUCTION & CRUDE OIL STORAGE BARGE

Dimensions: 180' L x 72' W x 12' H
Upper Deck: 158' L x 64'W x 21'H

PRODUCTION FACILITIES (20,000 BBLS Crude/30 MMCF Day)
8' x 20' Heater Treater 50 psi, Manufactured by Permian 2010
48" x 30' Horizontal 3ph 1440, 6" motor run, Offshore skid Hanover 2006
48" x 20' Horizontal 2ph 285 psi, offshore skid, Hanover 2006
(2) 30" x 10' Horizontal 3ph 1440 psi, Hanover 2006
Dehy & Regenerator 42" x 17' l mm btu Hanover
Glycol contact tower 36" x 30' Packed Tower, 1440 psi Packed Tower
(1) 20"x 8'6" Filter Sep, 1440 psi, Hanover 2008
(2) Gardner Denver 200QBX Qunitaplex SWD disposal pumps, 135hp
w/Waukesha Nat Gas Engines

12500 BBLS CRUDE OIL/SW Storage in Hull (Double Hull)

Description

CONCRETE PRODUCTION & CRUDE OIL STORAGE BARGE

Dimensions: 180' L x 72' W x 12' H
Upper Deck: 158' L x 64'W x 21'H

PRODUCTION FACILITIES (20,000 BBLS Crude/30 MMCF Day)
8' x 20' Heater Treater 50 psi, Manufactured by Permian 2010
48" x 30' Horizontal 3ph 1440, 6" motor run, Offshore skid Hanover 2006
48" x 20' Horizontal 2ph 285 psi, offshore skid, Hanover 2006
(2) 30" x 10' Horizontal 3ph 1440 psi, Hanover 2006
Dehy & Regenerator 42" x 17' l mm btu Hanover
Glycol contact tower 36" x 30' Packed Tower, 1440 psi Packed Tower
(1) 20"x 8'6" Filter Sep, 1440 psi, Hanover 2008
(2) Gardner Denver 200QBX Qunitaplex SWD disposal pumps, 135hp
w/Waukesha Nat Gas Engines

12500 BBLS CRUDE OIL/SW Storage in Hull (Double Hull)

Specifications
Registration
Construction: Steel
Location
Location: Gulf of Mexico
Measurements
Length: 180 Ft. / 54.864000000000004 Mt.
Beam: 72 Ft. / 21.945600000000002 Mt.
Regular Length: 180 Ft. / 54.864000000000004 Mt.
Depth: 12 Ft. / 3.6576000000000004 Mt.
